5030-class X-ray baggage scanner
Screens small baggage and parcels through a 500 × 300 mm tunnel with local network capability and audible/visual alarms.
Ask about this configurationTekRabbits Baggage Screening
X-Ray Baggage Scanners
Checkpoint scanning for hand baggage and small parcels.
Every day of the year support for selection, commissioning, operation and service
What this system does
A configuration for the real operating conditions.
The 5030-class inspection system is designed around a compact 500 mm wide by 300 mm high tunnel. The source product lists an approximate machine footprint of 1830 × 810 × 1480 mm and gross weight near 326 kg; site planning must allow for upstream and downstream conveyor space beyond the enclosure. TekRabbits scopes operator training and safe use as part of deployment.
TekRabbits reviews the site and recommends a system with the necessary controls, protection and manual procedures. Final capacities, options and interfaces are confirmed in the quotation for your installation.
Available configurations
Choose the form that fits the job.

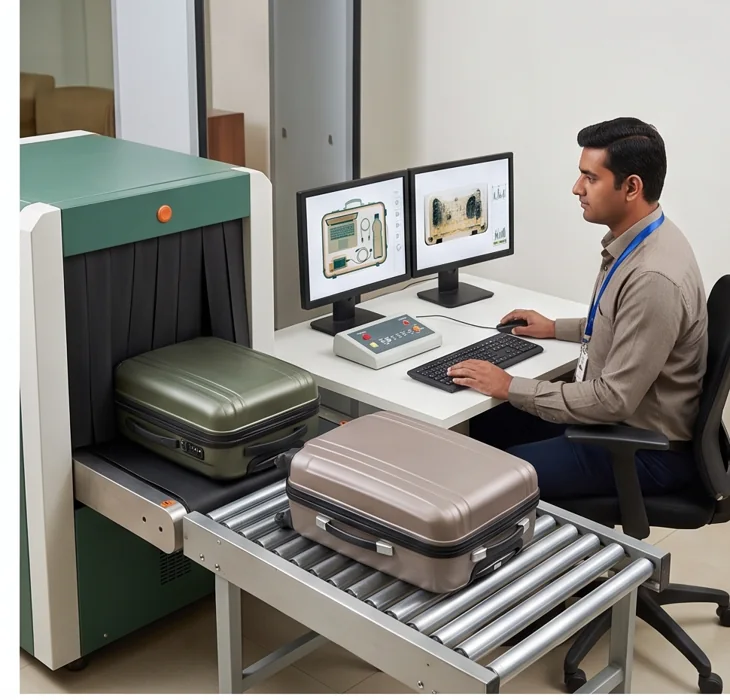

Inspection station in detail
X-Ray Baggage Scanners in operation.
The scanner, operator and passenger route must fit together. We select tunnel capacity from the bag mix and plan loading, image review, unloading and controlled secondary inspection.

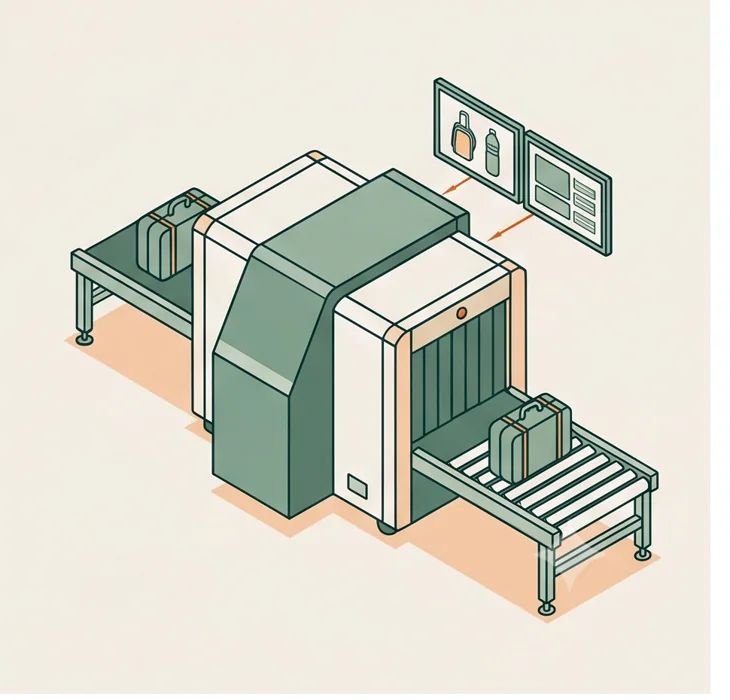

A controlled screening route
Bag loaded
Image reviewed
Result resolved
Bag collected or referred
Record bag dimensions, volume, available floor space and power at the inspection point.
Define queue, loading, operator view, cleared-bag collection and secondary-inspection routes.
Verify conveyor operation, image review procedure, controls and site-specific safety instructions.
Plan routine belt, interlock and image-quality checks with TekRabbits available every day.
Specification guide
What we check before recommending a system.
The questions below shape capacity, installation effort, controls and safety. A short site survey or clear photographs and dimensions can resolve many of them before the quotation.
- Measure the largest regular bag, parcel and peak arrival rate.
- Allow conveyor infeed/outfeed and operator viewing space.
- Confirm local regulatory, radiation safety and service requirements.
TekRabbits support
Every day of the year. The whole system.
Our support covers product selection, installation coordination, commissioning, user guidance, maintenance planning, spare parts and fault diagnosis. We agree any project-specific response and service terms before deployment.
See our support approachFrequently asked
X-Ray Baggage Scanners: common questions
Specific answers about configurations, site preparation, safety and support for x-ray baggage scanners.
Ask about your siteWhat configurations of x-ray baggage scanners are available?
The TekRabbits range covers 5030-class X-ray baggage scanner. We narrow the choice using the site conditions and confirm the exact capacity and options in the proposal.
What does 5030-class X-ray baggage scanner do?
Screens small baggage and parcels through a 500 × 300 mm tunnel with local network capability and audible/visual alarms. The final arrangement depends on the site's layout and operating procedure.
What measurements are needed before choosing x-ray baggage scanners?
Measure the largest regular bag, parcel and peak arrival rate. Measurements let us check capacity and fit instead of guessing from a product name.
Which operating conditions affect the recommendation?
Allow conveyor infeed/outfeed and operator viewing space. Tell us about peak use and any unusual environment so the equipment and controls fit daily operation.
What should be planned for safety and abnormal operation?
Confirm local regulatory, radiation safety and service requirements. We agree the protective devices and manual procedure for the installed configuration before commissioning.
Can this system connect to other controls?
Network and operator-station needs are assessed for the chosen scanner, but screening procedures and local safety requirements must be approved before deployment.
Can this be added to an existing site?
An existing checkpoint may accept a replacement scanner if infeed, outfeed, electrical supply, floor loading, operator visibility and safety clearances are adequate.
What maintenance should the system receive?

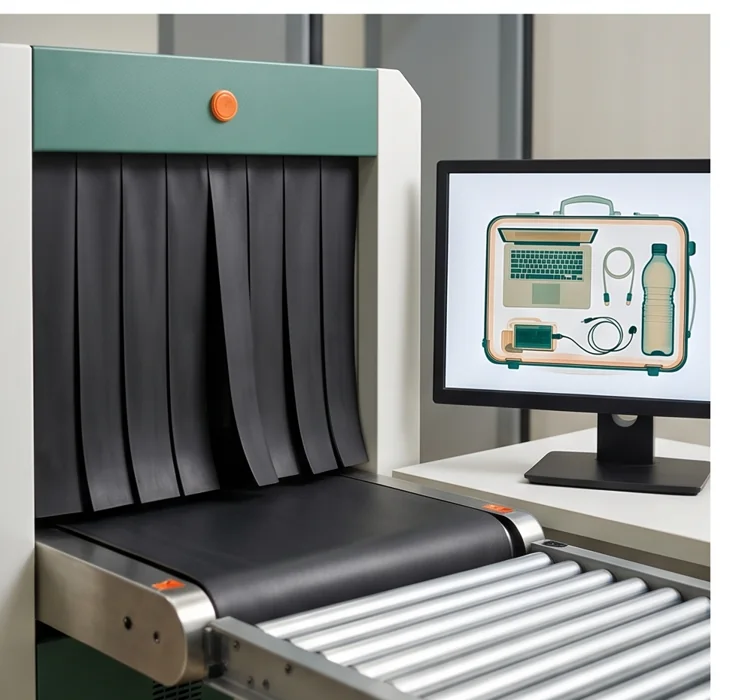

Maintain conveyor movement, imaging quality, warning indicators, protective curtains and operator procedures to the selected scanner's manual.
Does support every day of the year end after the first year?
No. “Every day of the year” describes when the TekRabbits support route is available, rather than a one-year after-sales term. On-site attendance, parts and response targets are set in the project agreement.
How do I request a recommendation for x-ray baggage scanners?
Use the Automation Services enquiry page. Share site location, dimensions, expected use, existing equipment and your preferred timeline. The selected product family is carried into the form.
Ready to specify x-ray baggage scanners?
Tell us the site type, dimensions, expected use and any existing equipment. We’ll help choose a configuration that fits.
